Extractor Arms

Uses

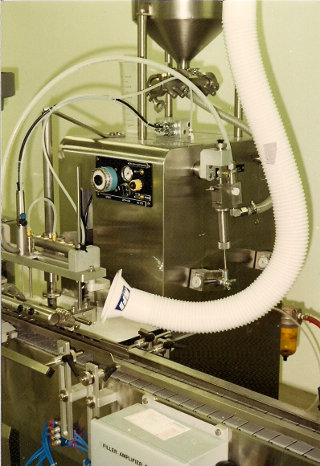

Extractor arms capture smoke, fume, dust, mist, powders, and dry chemicals from a wide range of industrial processes, including welding, soldering, brazing, grinding, brazing, grinding, machining, mixing, and packaging operations.

Available Models

E-Z Arm® High Flow Extractor — 13-inch diameter inlet hood in 7’, 10’, or 14’ lengths for heavy-duty applications.
E-Z Arm® II High Flow Extractor — 8-inch diameter inlet hood with 5’ or 8’ lengths.
E-Z Arm® 2.5 — 4.75-inch diameter inlet hood in 4’ or 6’ lengths for close, precision work.
Telescoping Collection Arm — 10-inch diameter in 4- to 5-foot lengths (5- to 7-foot lengths when extended); stainless steel construction.
Corrosion-resistant stainless steel construction (E-Z Arm® and E-Z Arm® II) for harsh industrial environments.

Features & Benefits

Friction release pawl-and-sprocket design engages positively when positions, yet offers no resistance when moved.

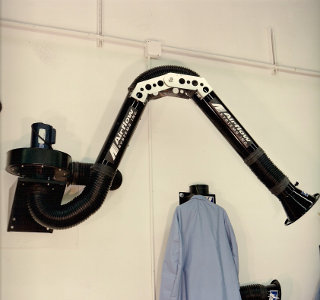

Can be bench- or wall-mounted, or incorporated with a filtration unit.
Easy to install — flat base bolts in place; HDPE bearing material works to seal base without need for collars or fittings.
Large, 13-inch diameter inlet hood offers 160° movement; 360° flange handle allows easier hood positioning than single-handle designs.
Rounded duct constructed of 20 gauge aluminum — durable, yet lightweight.
Hi-Flow hose spiral-wire reinforced for strength and flexibility; resists weld sparks and grinding embers.
